Equipment
Field-proven MPD equipment designed for precise pressure controland reliable performance.

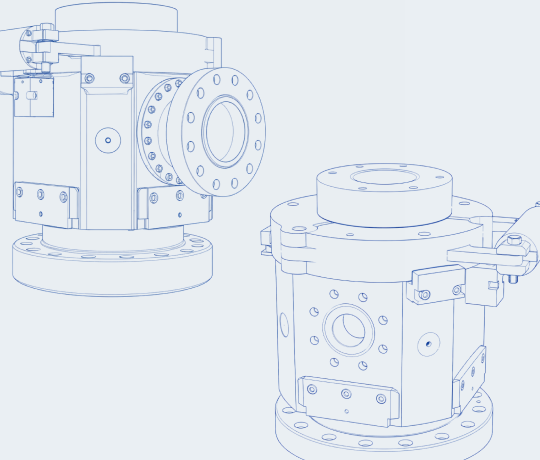

2K / 3K PSI Rotating Head Package
High-performance rotating head systems engineered for enhanced well control, reduced downtime, and reliable operation in medium-pressure MPD environments.KEY ADVANTAGES
- Leak-free annular seal for safe fluid diversion
- Reduced NPT through extended bearing life
- Remote-operated clamp minimizes personnel exposure
- Sealed bearing design eliminates need for lubrication
- Compact design for efficient rig-up in tight spaces
- Single or dual element configurations for flexibility
SYSTEM CONFIGURATION
- Medium-pressure rotating control device (RCD)
- Sealed bearing assembly
- Single or dual element configuration
- Multiple outlet and flange configurations
TECHNICAL SNAPSHOT
- API 16 RCD compliant
- Up to 3,000 PSI static rating
- Dynamic ratings up to 1,500 PSI
- Rotation speeds up to 200 RPM
- Multiple flange and equalization connections

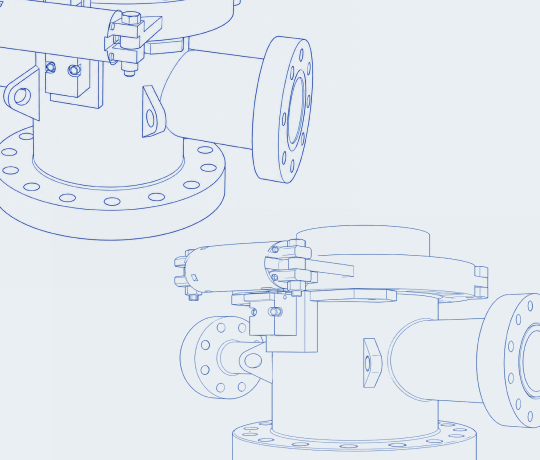

Low Pressure Rotating Head Package
Engineered for safe, controlled MPD operations, ADS low-pressure rotating head systems deliver reliable sealing, reduced downtime, and efficient fluid diversion.KEY ADVANTAGES
- Leak-free annular seal for safe fluid diversion
- Reduced NPT through extended bearing life
- Remote operation minimizes personnel in hazardous zones
- Sealed system eliminates need for lubrication
- Compact design for faster rig-up
SYSTEM CONFIGURATION
- 750 / 1500 PSI Rotating Head
- Orbit Valve
- Dual outlet configuration (if applicable)
TECHNICAL SNAPSHOT
- Built to API 16RCD standards
- 750 PSI dynamic / 1,500 PSI static pressure rating
- Rotation speeds up to 200 RPM
- Remote-operated clamp with locking pin assembly
- Multiple flange configurations available

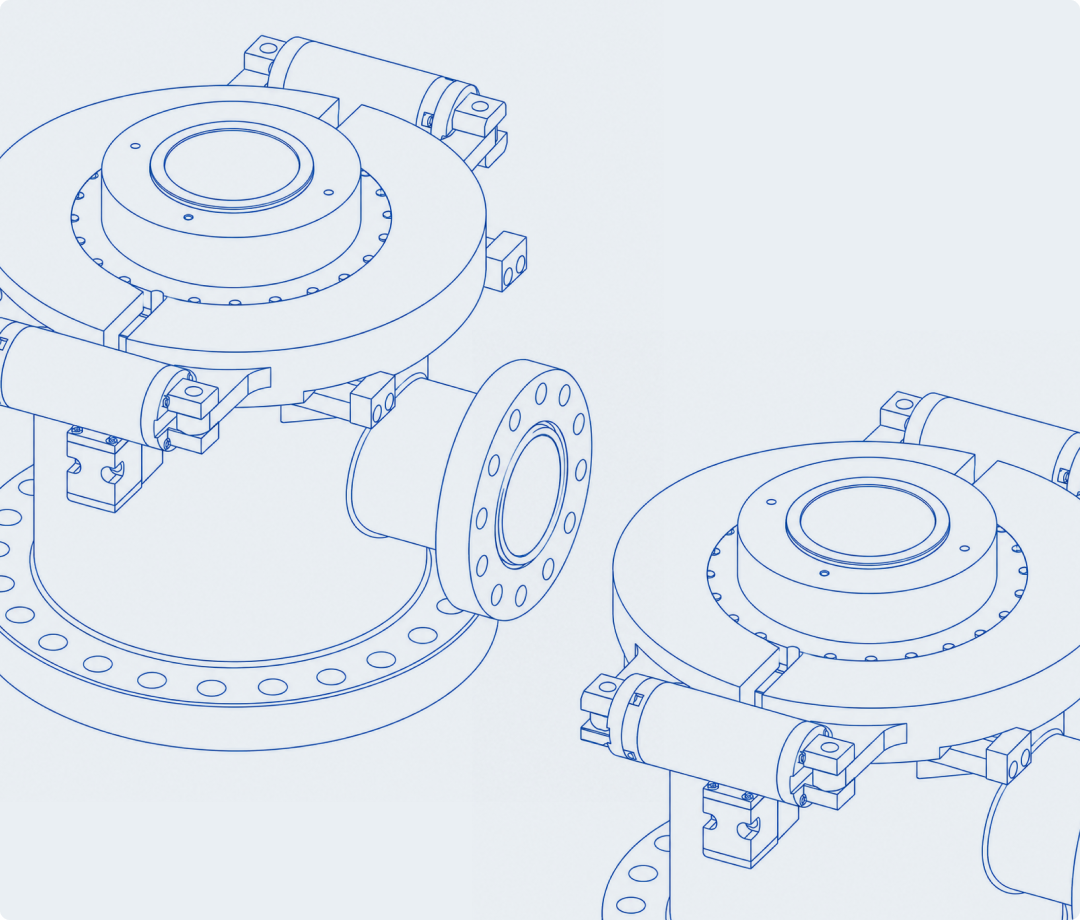

20" Rotating head
Built for surface sections and large pass-through applications, the 20” RCD delivers reliable sealing, safer fluid diversion, and consistent performance in demanding drilling environments.KEY ADVANTAGES
- Leak-free annular seal for safe diversion of returns
- Reduces NPT through extended bearing life
- Remote-operated clamp minimizes personnel in hazardous zones
- Proven design tested in field conditions
- Large 20” pass-through for high-volume applications
SYSTEM CONFIGURATION
- 20” Rotating Control Device
- Dual segment clamp system with latch actuator
- Sealed bearing assembly
TECHNICAL SNAPSHOT
- Built to API standards
- 500 PSI dynamic / 750 PSI static rating
- Rotation speeds up to 200 RPM
- Remote-operated clamp system
- Multiple flange configurations
